NEW QUESTION # 32
Refer to exhibit.

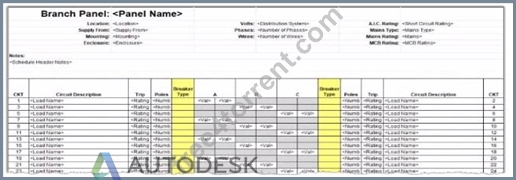

An electrical designer wants to report Breaker Type for each breaker in a panel schedule. The designer adds a column to the schedule as shown (and highlighted) in the image.
Which type of parameter should the designer create to add to the column?
- A. A Shored Parameter in the Electrical Equipment families.
- B. A Shared Parameter in the Electrical Fixture families.
- C. A Project Parameter assigned to Electrical Equipment.
- D. A Project Parameter assigned to Electrical Circuits.
Answer: D
Explanation:
In Autodesk Revit Electrical Design, panel schedules display data that originates from the Electrical Circuits category, not directly from the Electrical Equipment or Electrical Fixtures families. Each circuit in a panel schedule represents an instance of an Electrical Circuit object within Revit's system-based MEP structure. Therefore, to add an additional field like Breaker Type, the parameter must be created and assigned specifically to the Electrical Circuits category.
According to the Revit MEP User's Guide - Chapter 50 "Electrical Systems and Panel Schedules":
"Panel schedules display parameters that are associated with electrical circuits, including load names, rating, poles, and breaker information. To include additional circuit information in a panel schedule, create a Project Parameter assigned to the Electrical Circuits category." This means the designer should:
Open Manage → Project Parameters Add
Create a Project Parameter named Breaker Type
Assign it to the Electrical Circuits category
Set it to appear in schedules and tags, ensuring it becomes available for use in the panel schedule template As noted in the Smithsonian Facilities Revit Template User's Guide:
"Custom circuit data fields such as 'Breaker Type' or 'Wire Tag' are defined as project parameters applied to the Electrical Circuits category so they can be displayed in panel schedule templates." Incorrect options:
A . Shared Parameter in Electrical Equipment - Electrical Equipment holds overall panel data (e.g., Mains Rating, Voltage) but not per-circuit data.
B . Shared Parameter in Electrical Fixture families - Fixtures are individual load devices, not part of the circuit's breaker assignment.
D . Project Parameter assigned to Electrical Equipment - would apply to the panelboard as a whole, not to individual breakers in circuits.
Thus, the correct answer is C. Project Parameter assigned to Electrical Circuits, ensuring each breaker in the panel schedule can display its type individually and dynamically.
References:
Autodesk Revit MEP User's Guide - Chapter 50 "Electrical Systems and Panel Schedules," pp. 1134-1142 Smithsonian Facilities Revit Template User's Guide - Section 8.7 "Electrical Panel Schedule Customization," p. 91 Autodesk Revit Electrical Design Essentials - "Custom Circuit Parameters and Schedule Configuration"
NEW QUESTION # 33
Refer to exhibit.
A family in a project contains the following types:
The following edits are made in the Family Editor and loaded into the project:
1. The type Plain is renamed to Standard
2 A new type is added named GFCI
Which types does this family now have in the project?
1. The type Plain is renamed to Standard
- A. Above Counter. GFCI. Standard
- B. Above Counter. Plain. Standard
- C. Above Counter. Standard
- D. Above Counter. GFCI. Plain. Standard
Answer: A
Explanation:
In Revit, when editing a family in the Family Editor and reloading it into a project, Revit handles type changes using specific update rules. Types that are renamed overwrite their earlier version in the project because they retain the same internal type ID. Types that are added to the family also appear in the project once reloaded.
Initially, the family contains two types:
Above Counter
Plain
The changes made in the Family Editor are:
Rename Plain → Standard
Add a new type named GFCI
According to documented Revit behavior for type updates:
"When a family is reloaded into the project, any renamed family type replaces its previous version while maintaining its parameter assignments. Newly created types are added as additional family types available for placement within the project." Therefore:
Plain no longer exists because it was renamed
Standard now exists in its place
GFCI is added as a new family type
Above Counter remains unchanged
Thus, the family in the project now contains:
✅ Above Counter
✅ GFCI
✅ Standard
This matches answer choice:
B). Above Counter, GFCI, Standard
NEW QUESTION # 34
Exhibit.
An electrical designer is working within a workshared electrical model The designer reloads the linked architectural model and receives the message as shown in the exhibit What does this message indicate?
- A. A monitored element in the architectural model has changed.
- B. There is a new coordination message within the architectural model.
- C. An elements host within the architectural model has changed.
- D. There is a new interference with the architectural model.
Answer: A
Explanation:

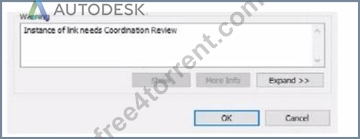

The warning message shown - "Instance of link needs Coordination Review" - appears when Revit detects a modification in a monitored element within a linked model, typically during a coordination workflow between architectural and MEP (electrical, mechanical, plumbing) disciplines.
According to the Revit MEP User's Guide (Chapter 46 "Copy/Monitor and Coordination Review"):
"When a monitored element changes in the linked model, Revit displays a warning message indicating that the instance of the link needs Coordination Review. You can use the Coordination Review tool to accept, reject, or postpone the change." This mechanism ensures synchronization between linked models. For example, if the architectural ceiling or wall that hosts electrical elements (such as lighting fixtures or devices) is modified, moved, or deleted, Revit triggers this alert in the workshared MEP model.
The Smithsonian Facilities Template Guide further emphasizes:
"Coordination Review identifies monitored elements whose hosts or geometry have changed in a linked model. The designer must review these to maintain design consistency." Hence, the warning does not indicate a clash or interference (Option A), nor a coordination message created manually in the architectural model (Option B), but specifically a change in a monitored element in the linked architectural model (Option D).
References:
Autodesk Revit MEP User's Guide - Chapter 46 "Copy/Monitor and Coordination Review," pp. 1084-1088 Smithsonian Facilities Revit Template User's Guide - Section 3.4 "Coordination Views," p. 86 Autodesk Revit Electrical Design Essentials - Coordination Workflows and Monitoring Elements
NEW QUESTION # 35
Refer to exhibit.
(The image is presented in Imperial units: 1 In = 25 mm (Metric units rounded).)
In the space properties for the space, the Lighting Calculation Luminaire Plane is Not Computed. What is causing this issue?
- A. Lights are at different elevations in the same space.
- B. No lights are placed in the space.
- C. The lights in this space are not circuited.
- D. The lighting fixtures are missing an IES file.
Answer: B
Explanation:
The parameter "Lighting Calculation Luminaire Plane: Not Computed" in the Space Properties dialog appears when Revit cannot perform a lighting calculation because no valid lighting fixtures are present within that defined space.
According to the Autodesk Revit MEP User's Guide (Chapter: Spaces and Lighting Analysis):
"Lighting calculations are performed based on the luminaire data available in the space. If no light fixtures are present, the parameter 'Lighting Calculation Luminaire Plane' displays as 'Not Computed'. Revit requires at least one hosted or ceiling-mounted lighting fixture with a valid light source to calculate illumination." In this case, although the space has defined reflectance values (ceiling, wall, and floor) and a lighting calculation workplane height (2'-6"), Revit cannot compute the Luminaire Plane because the software has no lighting geometry to reference for the photometric analysis.
Explanation of incorrect options:
A . Missing IES file: This would cause inaccurate photometric output, but not "Not Computed." C . Lights not circuited: Circuiting affects load summaries, not lighting calculations.
D . Lights at different elevations: Revit still computes the average luminaire plane even with varied fixture heights.
Thus, the lighting calculation is not computed simply because no lighting fixtures are placed in the space.
References:
Autodesk Revit MEP 2011 User's Guide, Chapter 46: Spaces and Lighting Analysis, pp. 1064-1068.
Autodesk Revit 2021 Electrical Design Guide, Lighting Analysis Parameters.
Smithsonian Facilities Revit Template User's Guide (2021), Section 8.7 - Lighting Performance Parameters in Spaces.
NEW QUESTION # 36
An electrical designer needs to add a drafting view to a model from another project. What is the method to do this?
- A. Select Open, select the desired project, right-click the desired drafting view, and then copy/paste
- B. Select Transfer Project Standards, select the desired project, and then select the drafting view.
- C. Select Insert from File, select Insert Views from File, browse to the desired project, and then select the drafting view.
- D. Select Link Revit, browse to the desired model, and then select desired drafting view
Answer: C
Explanation:
In Autodesk Revit, a drafting view is a 2D view that contains detail information not directly associated with the model. When an electrical designer needs to reuse a drafting view from another project (for example, standard details or symbols), the correct method is to use the Insert Views from File command under the Insert tab.
The Autodesk Revit MEP User's Guide - Chapter 48 "Detailing" (page 1072) describes the process as follows:
"Inserting a Drafting View from Another Project
Click Insert tab ➤ Import panel ➤ Insert from File drop-down ➤ Insert Views from File.
In the Open dialog, select a project file, and click Open.
The Insert Views dialog opens, displaying all the views that are saved in that project.
Select the desired drafting views and click OK."
(Revit MEP User's Guide, p. 1072)
This command imports the drafting view into the current Revit model while preserving annotations, filled regions, detail components, and text. It ensures that any standard electrical symbols, notes, or schematics created previously can be directly reused without rebuilding the detail from scratch.
If any duplicate type names exist, Revit automatically uses the types and properties from the current project, displaying a warning if necessary.
"Revit MEP creates a new drafting view with all the 2D components and text. If you have duplicate type names, the type name and properties from the current project are used." (Revit MEP User's Guide, p. 1072) Supporting Documentation Extracts:
"Saving Drafting Views to an External Project
Select a drafting view in the Project Browser.
Right-click the view name, and click Save to New File."
(Revit MEP User's Guide, p. 1071)
"The saved project can then be used later to insert drafting views into another Revit project using Insert Views from File." (Revit MEP User's Guide, p. 1072)
NEW QUESTION # 37
Refer to exhibit.
(The image is presented in Imperial units: 1 In = 25 mm [Metric units rounded].)

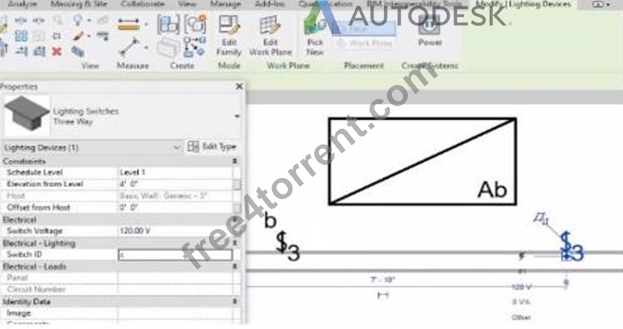

An electrical designer is trying to add the selected three-way switch to the existing switch system "b". The designer is unable to add the switch to the switch system.
Why is this problem occurring?
- A. Revit is not in Edit Switch System mode.
- B. A switch system can contain only one switch.
- C. The switch is not powered.
- D. The switch's Switch ID parameter does not match the switch system.
Answer: D
Explanation:
In Autodesk Revit Electrical Design, lighting control systems such as single-pole, three-way, and four-way switches are managed using Switch Systems. These systems logically connect lighting devices (switches) to the lighting fixtures they control. For multiple switches (like three-way configurations) to be part of the same control circuit, they must share the same Switch ID value.
In the exhibit, the electrical designer is attempting to add a three-way switch to the existing switch system labeled "b", but Revit does not allow it. The reason is that the Switch ID parameter of the new switch does not match the Switch ID of the system it is intended to join.
The Switch ID acts as the unique identifier that links all switches controlling the same group of fixtures. If the IDs differ (for example, "b3" versus "b"), Revit interprets them as belonging to separate systems and prevents them from being grouped together.
The Autodesk Revit MEP User's Guide - Electrical Systems: Lighting and Switch Systems explains this clearly:
"Switch systems are organized by Switch ID. All switches controlling the same lighting circuit must have identical Switch ID values. Revit will not allow a switch to be added to an existing system if its Switch ID does not match that system's identifier." To fix this, the designer must:
Select the three-way switch.
In the Properties palette, locate the Switch ID parameter.
Change its value to match the target switch system's ID (in this case, "b").
Once both switches share the same Switch ID, Revit will successfully include them in the same Switch System.
NEW QUESTION # 38
An electrical designer has noticed lighting fixtures present in an architectural linked model. Which tool should be used to place an instance of those fixtures in the current electrical model while maintaining the position from the architectural model?
- A. Copy/Monitor
- B. Reload Latest
- C. Reconcile Hosting
- D. Coordination Review
Answer: A
Explanation:
When lighting fixtures placed in an architectural linked model need to be replicated in the electrical model while maintaining their exact positions, the correct tool is Copy/Monitor.
This Revit feature allows the electrical designer to copy elements-like lighting fixtures-from a linked model into their project, while establishing a monitoring relationship between the original (architectural) and copied (electrical) instances.
From the Autodesk Revit MEP User's Guide - Chapter 55 "Multi-Discipline Coordination" (pages 1349-1357):
"Use the Copy/Monitor tool to copy MEP fixtures from an architectural model into an MEP project, and monitor them for changes." (Revit MEP User's Guide, p. 1350)
"To copy fixtures from a linked model:
Click Collaborate tab ➤ Coordinate panel ➤ Copy/Monitor ➤ Select Link.
Select the linked architectural model in the drawing area.
Click Copy and select the lighting fixtures to copy.
Click Finish.
Revit MEP copies the fixtures to the current project and establishes monitoring relationships."* (Revit MEP User's Guide, p. 1356) Behavior and Benefits:
The copied lighting fixtures maintain the same location, orientation, and type mapping as in the linked model.
Any changes (move, delete, or modify) made by the architect in the linked model will trigger a coordination review in the electrical model.
This ensures accurate positioning and easy coordination between disciplines.
"When you select a copied fixture in the current project, the monitor icon displays next to the fixture, indicating that it has a relationship with the original fixture in the linked model." (Revit MEP User's Guide, p. 1357)
"If copied fixtures are moved, changed, or deleted in the linked model, Revit MEP notifies the engineers of the changes during Coordination Review." (Revit MEP User's Guide, p. 1357)
NEW QUESTION # 39
A project has 24 branch panel schedules that all need the same formatting changes. What should the electrical designer do?
- A. Use the Manage Templates command to edit and apply the template changes to all panel schedules.
- B. Assign the desired view template to the panel schedules in the Properties panel.
- C. Select all panel schedules in the Project Browser, right-click and choose Apply Template Properties, and select the desired template.
- D. Edit a panel schedule, right-click and choose Duplicate View, and duplicate changes lo desired panel schedules.
Answer: C
Explanation:
To ensure consistency and efficiency when multiple branch panel schedules require identical formatting, Revit allows applying a panel schedule template to one or more schedules simultaneously.
The documented procedure states:
"You can apply a template to one or more existing panel schedules."
And further:
"Select the panel schedule(s).
For Apply Templates, specify the template to apply to the selected panel." This functionality lets an electrical designer select all 24 branch panel schedules in the Project Browser, right-click and apply the desired template to update formatting across all selected schedules in a single operation.
NEW QUESTION # 40
An electrical designer is routing conduit through a building model to coordinate with other disciplines, the electrical designer wants to view selected components in a cropped 3D view.
With the conduit components selected, which tool should the designer use?
- A. Scope Box
- B. Selection Box
- C. Default 3D View
- D. Section Box
Answer: B
Explanation:
In Revit Electrical Design, the Selection Box tool is used to quickly isolate and display selected components in a cropped 3D view. When an electrical designer selects conduits or devices in a model and chooses Selection Box from the Modify tab, Revit automatically generates a 3D view bounded tightly around the selected elements, helping coordinate routing in confined or congested spaces.
According to the Revit MEP User's Guide under "Creating 3D Views":
"Use the Selection Box tool to create a 3D view that isolates selected elements. Revit automatically crops the view extents to the selected geometry." This feature is critical in multidisciplinary coordination because it allows the electrical designer to review specific conduits, cable trays, or lighting paths in context without manually adjusting view boundaries.
In contrast:
Default 3D View (Option B) shows the entire model.
Scope Box (Option C) controls view extents in 2D views or view templates, not instant isolation.
Section Box (Option D) is manually adjusted within an existing 3D view but does not automatically generate a cropped view around selected elements.
Therefore, the Selection Box is the correct and most efficient tool for this task.
References:
Autodesk Revit MEP User's Guide - Chapter 47 "Creating and Managing 3D Views," pp. 1108-1111 Smithsonian Facilities Revit Template User's Guide - Section 3.6 "Egress Routes and Coordination Views," p. 40 Autodesk Revit Electrical Design Essentials - 3D Visualization and Coordination Techniques
NEW QUESTION # 41
Refer to exhibit.

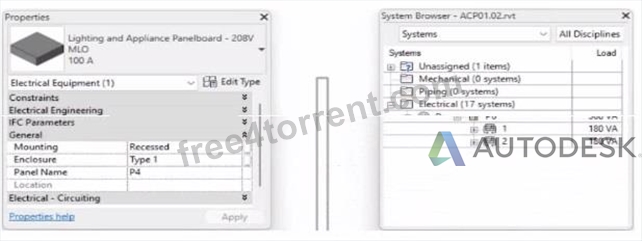

To which panel Is Panel P4 circuited?
- A. Panel P 2
- B. Panel P 1
- C. Panel P 3
- D. Panel P 5
Answer: A
Explanation:
In Autodesk Revit MEP Electrical Design, the System Browser is used to analyze and verify electrical systems, including panelboard connections, circuit hierarchies, and connected loads.
From the exhibit, the Properties palette shows that the selected equipment is a Lighting and Appliance Panelboard (208V MLO, 100A), named P4. To determine the parent panel that feeds Panel P4, we refer to the System Browser, which organizes the entire electrical distribution network hierarchically under the Electrical discipline.
In the System Browser on the right, under the Electrical category, we can observe that Panel P4 is nested directly under Panel P2. This organization indicates that P4 is circuited to (or fed from) Panel P2.
According to the Revit MEP 2011 User's Guide, Chapter 4, "Electrical Systems-Using the System Browser," it states:
"The System Browser displays electrical systems in a tree structure. Each subpanel or device listed beneath a main panel is connected to that panel through an electrical circuit. When a panelboard appears under another, it indicates the subpanel is fed from that parent panel." This is further reinforced in Smithsonian Facilities Revit Electrical Template Documentation (April 2021), Section 8.3 "Documentation Views," which describes:
"Panel schedules and browser hierarchies show the distribution sequence. Subpanels appear indented beneath their source panel, indicating electrical dependency and circuit assignment." Therefore, by interpreting both the Revit interface and Autodesk's documentation, Panel P4 is a subpanel connected to Panel P2, confirming that its electrical feed is assigned from Panel P2.
Final Verified answer: B. Panel P2
Reference Sources:
Autodesk Revit MEP 2011 User's Guide, Chapter 4 - Electrical Systems and the System Browser Smithsonian Facilities Revit Template User's Guide, Section 8.3 - Electrical and Fire Alarm Templates: Documentation Views
NEW QUESTION # 42
Refer to the exhibit.
- A. Project Browser > Conduits > Conduits with Fittings > Single Line Symbology
- B. Properties > Edit Type > Single Line Symbology
- C. Electrical Settings > Conduit Settings > Rise Drop > Single Line Symbology
- D. Object Styles > Conduits > Rise/Drop > Single Line Symbology
Answer: B
Explanation:
In Autodesk Revit MEP, conduit systems can be represented in plan views using either detailed or single-line symbology. The Single Line Symbology display setting is used for schematic or simplified representations - often in electrical riser or distribution diagrams.
The setting that controls whether conduits display in single-line or detailed form is found in the Type Properties of the conduit family, not in Object Styles or Electrical Settings. Specifically, it is accessed by selecting a conduit in the model and navigating to:
Properties Palette → Edit Type → Single Line Symbology
From there, users can define how fittings, rise/drop symbols, and conduits themselves are represented in single-line schematic mode. Adjusting this type parameter affects the graphical display for that conduit type throughout all applicable views where single-line graphics are used.
According to the Autodesk Revit MEP User's Guide (Electrical Systems → Conduit Systems section):
"The conduit type properties define the graphical representation in single-line drawings. By editing the Single Line Symbology in the Type Properties dialog, designers control how the conduit and fittings appear in plan views." This parameter is especially important in electrical documentation where simplified representations are required for coordination and electrical diagrams.
NEW QUESTION # 43
Refer to exhibit.
An electrical designer is circuiting a dwelling unit. The receptacle (electrical fixture) shown must be controlled by the switch (lighting device) shown to switch a plug-in lamp When the receptacle is selected, Revit does not provide an option to add the receptacle to a switch system.
What is causing this issue?
- A. The switch and the receptacle are not on the same circuit
- B. A switch system has not yet been created.
- C. The receptacle's "Switchable" option Is not selected within the family editor.
- D. Only lighting fixtures can be added to switch systems.
Answer: C
Explanation:
In Autodesk Revit Electrical Design, when an electrical designer attempts to control a receptacle (an Electrical Fixture family) with a switch (a Lighting Device family) as part of a switch system, Revit will only allow this connection if the receptacle's family has been configured as Switchable within the Family Editor.
According to the Autodesk Revit MEP User's Guide (Chapter 17 - "Electrical Systems"):
"Revit allows you to add elements such as lighting fixtures or receptacles to a switch system only if the family includes a switchable connector. The 'Switchable' parameter must be enabled in the Family Editor to allow this connection." This means that for the receptacle shown in the exhibit to appear as an available component for switching, the Electrical Connector within its family must have the Switchable property checked. This parameter is found under:
Family Editor → Select Connector → Properties Palette → Electrical - Data → Switchable.
If this option is not enabled, Revit treats the receptacle as a standard unswitched outlet and will not display it in the switch system creation dialog. Once the option is checked, the designer can reload the family into the project and associate it with a switch system normally.
Additionally, the Smithsonian Facilities Revit Template User's Guide explains this concept as follows:
"To associate receptacles with lighting switches, ensure that the receptacle family has a switchable connector. Without this setting, the device will not appear as an assignable component to a switch system." This distinction is important in residential electrical modeling, where switched receptacles are common for plug-in lamps. Lighting circuits can include both Lighting Fixtures and Switchable Receptacles when the family configuration supports it.
Incorrect Options Explanation:
A . A switch system not being created is irrelevant - the issue occurs before system creation.
C . Being on the same circuit doesn't affect switchability; it affects electrical load connection.
D . Incorrect - Revit supports switchable receptacles if properly configured.
Therefore, the correct answer is B. The receptacle's "Switchable" option is not selected within the family editor.
References:
Autodesk Revit MEP User's Guide - Chapter 17 "Electrical Systems," pp. 417-421 Autodesk Revit Electrical Design Essentials - Section "Creating and Editing Electrical Fixtures and Switch Systems" Smithsonian Facilities Revit Template User's Guide - Section 8.4 "Switchable Receptacle Family Standards," p. 89
NEW QUESTION # 44
Refer to exhibit.
An electrical designer is reviewing the Type Properties for a floor plan view. How will the view behove when creating a new floor plan?
- A. When duplicating a floor plan view of any type, the Electrical Plan view template will be assigned to the new floor plan view.
- B. Creating a new floor plan view using the Floor Plan tool with the Floor Plan type selected will create a new Electrical Plan view template.
- C. A new floor plan view created by duplicating a floor plan view of the Floor Plan type will be duplicated as a dependent view.
- D. The Electrical Plan view template will be assigned to a new floor plan view created with the Floor Plan tool with the Floor Plan type selected
Answer: D
Explanation:

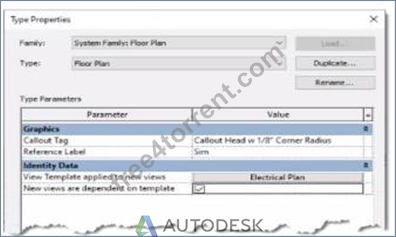

The exhibit shown displays the Type Properties dialog box for a System Family: Floor Plan view type. Within the "Identity Data" group, there are two critical parameters that govern the behavior of new views created from this view type:
"View Template applied to new views"
"New views are dependent on template"
According to Autodesk Revit's documentation in the Revit MEP User's Guide (Chapter 48 "Views and View Templates" and Chapter 49 "Preparing Construction Documents"):
"When a view template is assigned to a view type through the Type Properties dialog, any new view created from that view type automatically receives the defined view template. This ensures consistent visibility, graphics, and discipline settings for all new views." In this image, the parameter "View Template applied to new views" is set to Electrical Plan, and "New views are dependent on template" is checked. This means that any new floor plan created using this type will automatically have the Electrical Plan template applied, and the view will be dependent on that template, meaning it inherits all its visibility and annotation control settings.
This ensures that all electrical floor plan views generated are standardized and visually consistent, a fundamental practice in Revit Electrical Design workflows, as described in the Smithsonian Facilities Revit Template User's Guide:
"Assigning a default view template to a view type (e.g., Electrical Plan) ensures every new view created follows organizational and graphical standards without manual setup." Option A matches this behavior exactly.
Option B is incorrect** because Revit does not create a new template automatically.
Option C is incorrect** because duplication of an existing view does not reassign templates by type.
Option D is incorrect** because dependent view creation requires a specific "Duplicate as Dependent" command, not this setting.
References:
Autodesk Revit MEP User's Guide - Chapter 48 "Views and View Templates," pp. 1112-1115 Smithsonian Facilities Revit Template User's Guide - Section 2.8.1 "View Types and View Templates," p. 30 Autodesk Revit Electrical Design Essentials - View Template Application and Management Section
NEW QUESTION # 45
Refer to exhibit.
An electrical designer is working on an Electrical Device Panel-Circuit tag. The designer tags a receptacle using the tag properties shown in the exhibit The receptacle is assigned to panel P203 and circuit 2.4.
Which option shows the correct tag?
- A.
- B.
- C.
- D.
Answer: A
Explanation:

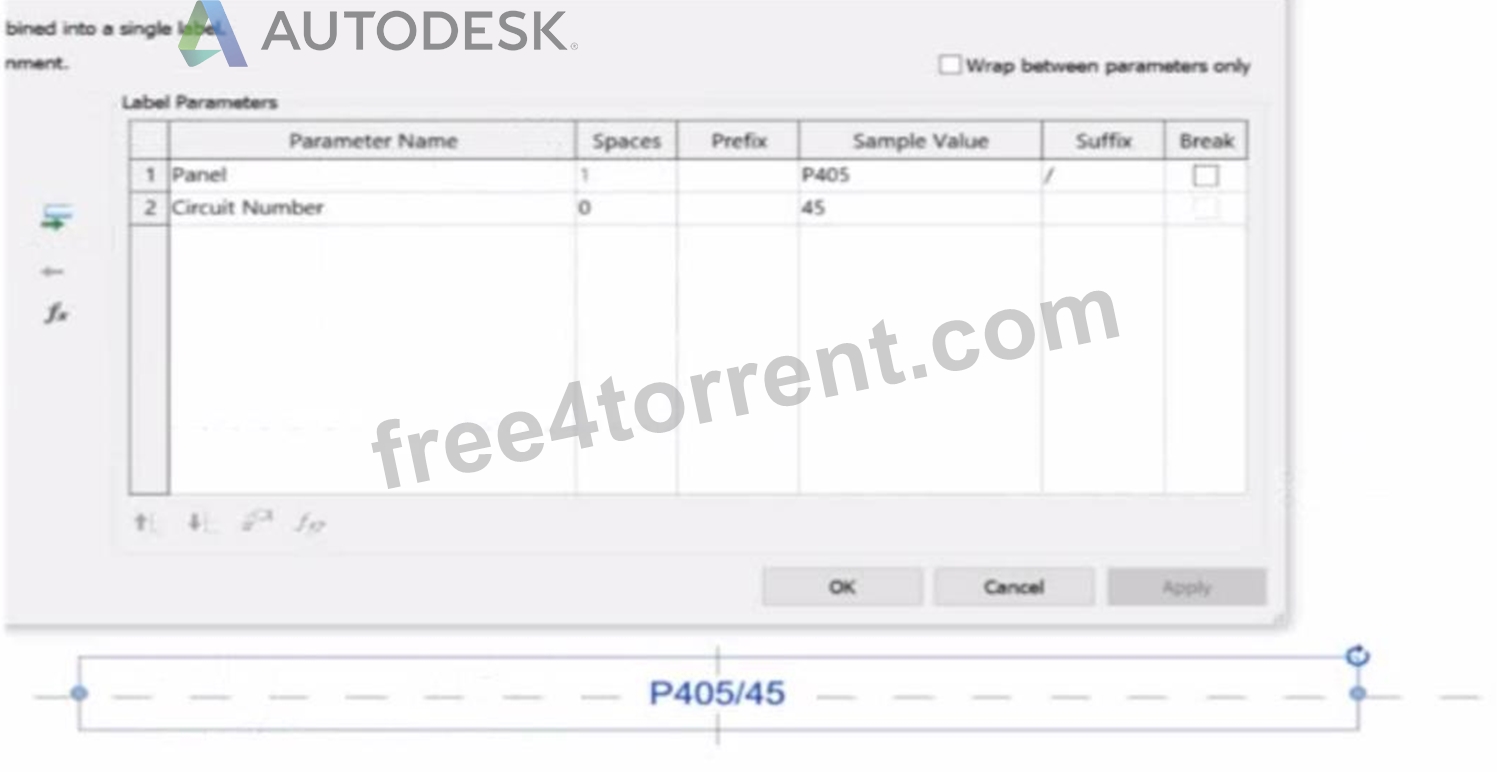

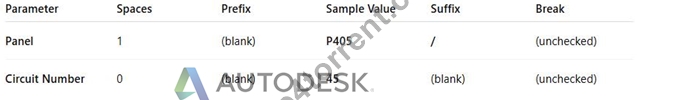

In the exhibit, the Label Parameters for the electrical device tag are configured as follows:
This setup determines how the tag will display in Revit when applied to any device. Specifically:
The Panel parameter (P203 in this case) will be shown first.
A "/" separator follows because it's assigned as the suffix for the Panel parameter.
The Circuit Number (2,4) is displayed immediately after the slash, with no extra spaces or line breaks.
Since the Break column is unchecked, the values will appear on one continuous line, not split across lines.
Revit documentation for tag creation confirms this behavior:
"When defining label parameters in a tag family, the Prefix and Suffix fields control text that appears before or after the parameter value, while the Break checkbox controls whether the text wraps to a new line." Therefore, when the tag is applied to a receptacle on panel P203 and circuit 2,4, the final formatted text will be:
P203/2,4
This corresponds exactly to option B, where the panel and circuit appear on the same line separated by a slash, with no spaces or line breaks.
NEW QUESTION # 46
Refer to exhibit.
(The Image is presented in Imperial units: 1 In = 25 mm [Metric units rounded).)
What is the electrical designer trying to do as shown in the exhibit?
- A. Place Parallel Conduits
- B. Array Conduit
- C. Place Multiple Pipe
- D. Add Cable Tray
Answer: A
Explanation:
The exhibit shown in the image is taken directly from the Revit MEP Electrical Systems workspace, specifically from the Parallel Conduits command interface. This dialog box appears when the designer activates the Place Parallel Conduits tool in the Systems tab → Electrical panel → Conduit dropdown → Parallel Conduits.
In this interface, the designer can specify:
Horizontal Number / Offset - defines how many conduits will be created horizontally and their spacing.
Vertical Number / Offset - defines how many conduits will be created vertically and their spacing.
Bend Radius Options:
Same Bend Radius - all conduits use identical bend radii.
Concentric Bend Radius - conduits bend concentrically around a common center point.
According to Autodesk's Revit MEP 2011 User's Guide (Chapter 18, Electrical Systems - Conduit Layout):
"The Parallel Conduits tool allows you to create multiple conduits side-by-side at the same time.
You can specify the number of conduits horizontally and vertically, as well as the offset between them.
You can also define whether bends have the same bend radius or concentric bend radii."
- Revit MEP User's Guide, Electrical Systems, Section: Conduit Layout
This tool is used when electrical designers need to route groups of conduits that run in parallel-such as power and data conduits running between panels or equipment racks.
The Concentric Bend Radius option (as shown in the exhibit) ensures all conduit bends share a common center, which is critical for maintaining uniformity in conduit sweeps and avoiding clashes during coordination.
Therefore:
A . Add Cable Tray - incorrect; the cable tray tool is separate and does not use bend radius options.
C . Array Conduit - incorrect; arraying is a different geometric function not specific to conduit routing.
D . Place Multiple Pipe - incorrect; applies to mechanical piping systems, not electrical conduits.
The display of Concentric Bend Radius, Horizontal Number, Vertical Number, and Offset confirms that the designer is using the Parallel Conduit placement tool.
Verified Reference Extracts from Revit Electrical Design Documentation:
Autodesk Revit MEP User's Guide (2011) - Electrical Systems → Conduit Layout → "Parallel Conduits Tool" description.
Autodesk Revit MEP Training Curriculum - Electrical Module, Exercise 6.3 "Placing Parallel Conduits," which illustrates the same interface for bend radius configuration.
NEW QUESTION # 47
Refer to exhibit.
Which two actions were used to create this light fixture schedule? (Select two.)
- A. Sorted by type mark.
- B. Sorted by instance and quantity.
- C. Added both electrical and switch system settings.
- D. Deselected Itemize every instance.
- E. Filtered to only show lights that have a type mark value.
Answer: A,D
Explanation:
In the given Lighting Fixture Schedule, each row represents a lighting fixture type rather than individual instances, and the "Count" column summarizes how many fixtures of that type exist in the project. To achieve this layout in Revit, two specific actions must be performed in the Schedule Properties dialog:
Deselected "Itemize every instance."
The Revit documentation explains:
"Itemize every instance. This option displays all instances of an element in individual rows. If you clear this option, multiple instances collapse to the same row based on the sorting parameter. If you do not specify a sorting parameter, all instances collapse to one row." By deselecting this checkbox, Revit consolidates identical fixture instances of the same type into a single row - exactly as shown in the exhibit, where each "Type Mark" (A, B, C, etc.) appears once with a summarized Count.
Sorted by Type Mark.
On the same Sorting/Grouping tab, Revit allows users to organize the schedule by a specific field:
"On the Sorting/Grouping tab of the Schedule Properties dialog, you can specify sorting options for rows in a schedule... You can sort by any field in a schedule, except Count." In the example, fixtures are sorted alphabetically by their "Type Mark" (A through E). This ensures the grouped and counted results appear in order.
Other options-such as filtering by type mark or adding switch data-do not impact how instances collapse or group within the schedule.
NEW QUESTION # 48
Which condition applies when placing a colling-hosted light fixture?
- A. The light must be defined in the ceiling layout pattern.
- B. The light must be placed in the same model as the ceiling
- C. The light must be snapped to the celling using nodes.
- D. The light must be hosted to the celling reference plane.
Answer: B
Explanation:
According to Autodesk's Revit MEP User's Guide (Revit MEP 2011, Chapter 17 "Electrical Systems"), lighting fixtures in Revit are hosted components-this means they rely on another model element (like a wall, ceiling, or floor) to exist. Specifically, ceiling-hosted lighting fixtures must be placed on a ceiling element that is within the same model file in which the light is being placed.
From the document:
"Most lighting fixtures are hosted components that must be placed on a host component (a ceiling or wall). To place a lighting fixture in a view:
In the Project Browser, expand Views (all) ➤ Floor Plans, and double-click the view where you want to place the lighting fixture.
Click Home tab ➤ Electrical panel ➤ Lighting Fixture.
In the Type Selector, select a fixture type.
On the ribbon, verify that Tag on Placement is selected to automatically tag the fixture.
Move the cursor over the drawing area.
The lighting fixture is previewed as you move the cursor over a valid host or location in the drawing area.
Click to place the lighting fixture."
- Revit MEP User's Guide, Chapter 17: Electrical Systems, p. 402
Additionally, in the Rendering section of the same guide, Autodesk clearly defines hosting relationships in lighting fixture templates:
"The names of all lighting fixture templates include the words Lighting Fixture. Be sure to select the appropriate template for the type of lighting fixture that you want to create. For example, to create a ceiling-based fixture for metric projects, use Metric Lighting Fixture ceiling based.rft.
Revit MEP opens the Family Editor. The template defines reference planes and a light source. For ceiling-based and wall-based fixtures, the template includes a ceiling or wall to host the fixture."
- Revit MEP User's Guide, Chapter 50: Rendering, p. 1148
This indicates that the ceiling host must physically exist within the same model environment. If the ceiling is part of a linked architectural model, the lighting fixture cannot attach to it directly because Revit does not allow cross-model hosting. In such cases, a work plane-based or face-based light family must be used instead.
Therefore, among the given options:
A (snapping using nodes) and B (hosted to a ceiling reference plane) are partial actions within a placement workflow, not hosting conditions.
C (defined in the ceiling layout pattern) is incorrect because pattern layout does not determine hosting.
D (placed in the same model as the ceiling) is correct since Revit requires the ceiling host and the light fixture to exist in the same project file for the hosting relationship to function.
Verified Reference Extracts from Revit for Electrical Design Documentation:
Autodesk Revit MEP User's Guide (2011), Chapter 17: Electrical Systems, p. 402 - "Most lighting fixtures are hosted components that must be placed on a host component (a ceiling or wall)." Autodesk Revit MEP User's Guide (2011), Chapter 50: Rendering, p. 1148 - "For ceiling-based and wall-based fixtures, the template includes a ceiling or wall to host the fixture." Revit MEP Family Templates Description - Metric Lighting Fixture ceiling based.rft defines the ceiling as the hosting reference within the same model environment.
NEW QUESTION # 49
An electrical designer has created a family and loaded It Into the project. The designer wants to connect the family to a power circuit but the Power icon is not available when the family Is selected.
How should the designer fix the problem?
- A. Change the Voltage parameter value to non-zero.
- B. Add an electrical connector to the family.
- C. Set the distribution system for the family.
- D. Set the family parameter to Shared.
Answer: B
Explanation:
In Revit Electrical Design, for a loadable family (such as electrical equipment, lighting fixtures, or devices) to connect to a power circuit, it must include an electrical connector defined in the Family Editor.
According to the Autodesk Revit MEP User's Guide (Chapter 17 - Electrical Systems):
"For an electrical family to participate in a circuit, the family must contain an electrical connector. The connector defines the relationship between the component and the electrical system. Without a connector, Revit cannot establish a power connection, and the Power tool will not be available."
- Revit MEP User's Guide, Electrical Systems - Creating Electrical Families The connector type determines what kind of system (Power, Data, Communication, etc.) the family can join. When the electrical connector is not added, Revit cannot recognize the family as part of an electrical system, and thus the Power icon is grayed out or unavailable.
Incorrect Options:
A . Set the distribution system for the family - only available after a connector is added.
B . Set the family parameter to Shared - allows tagging or scheduling across projects but does not affect connectivity.
C . Change the Voltage parameter value - affects circuit data but not connection availability.
Therefore, the issue is resolved only by adding an electrical connector in the Family Editor.
Verified References:
Autodesk Revit MEP User's Guide (2011) - Electrical Systems → Creating Electrical Families → Adding Connectors Revit Electrical Design Fundamentals Workbook - "Electrical connectors define the interface between components and electrical systems."
NEW QUESTION # 50
When creating a power circuit, which two rules are enforced by the program? (Select two.)
- A. Items on the circuit must be in the same workset.
- B. Items on the circuit must have an apparent load value assigned.
- C. Items on the circuit must be associated with a transformer.
- D. Items on the circuit must be in the same model.
- E. Items on the circuit must be assigned the same voltage definition
Answer: D,E
Explanation:
According to the Autodesk Revit MEP User's Guide (Chapter 17 - Electrical Systems), when creating power and lighting circuits, Revit enforces specific compatibility rules to ensure the accuracy and integrity of electrical systems. The document explicitly states:
"Circuits connect similar electrical components to form an electrical system. Once created, you can edit circuits to add or remove components, connect a circuit to a panel, add wiring runs, and view circuit and panel properties... A component can be connected in a circuit if it is compatible with the other components in the circuit and if it has an available connector." Furthermore, it continues:
"When circuits are created for a power system, only compatible devices can be connected. All devices in a circuit must specify the same distribution system (voltage and number of poles). The distribution system can be specified by type parameters or instance parameters. When you create a circuit where all the devices have the distribution system specified as instance parameters, Revit MEP displays a Specify Circuit Information dialog where you can specify values for the number of poles and voltage prior to creating the circuit." Additionally, the documentation clarifies that circuits must exist within the same project model to maintain system logic and consistency. It explains that "circuits connect similar electrical components within a particular system," which implicitly enforces that items must reside in the same model file. Revit's data structure does not allow cross-model circuit connections, since circuit logic, load calculations, and panel assignments depend on shared model parameters and hosted relationships between electrical families.
Therefore, the two rules enforced by Revit when creating a power circuit are:
A). Items on the circuit must be in the same model.
This ensures data integrity and consistency across electrical systems, as circuits cannot span multiple linked models.
C). Items on the circuit must be assigned the same voltage definition.
This guarantees that only devices with matching voltage and pole configurations can be logically and electrically connected to the same circuit.
Other options, such as requiring apparent load values or association with transformers, are not mandatory for circuit creation-they are design considerations applied after circuits are established. Worksets (option D) manage collaboration, not circuit validity.
Verified Reference:
Autodesk Revit MEP 2011 User's Guide, Chapter 17 "Electrical Systems," Sections Creating Circuits and Creating Power and Lighting Circuits, pp. 461-463.
NEW QUESTION # 51
An electrical designer is working in a workshared project with a team of people. The electrical designer does not want to see the linked architectural model in any of their views. The rest of the team still needs to see the architectural link.
Which process should the electrical designer use?
- A. Manage Links > Select architectural link > Click Unload for me
- B. Manage Links > Select architectural link > Click Unload
- C. Manage Links > Select architectural link > Click Remove
- D. Manage Links > Select architectural link > Click Unload For all users
Answer: A
Explanation:
In Autodesk Revit workshared projects, it is common for teams from multiple disciplines (architecture, structure, MEP) to collaborate using linked Revit models. Sometimes, an electrical designer may wish to hide or unload the linked architectural model only for their local session, without affecting how other team members see it.
Revit provides the "Unload for Me" option specifically for this purpose.
According to the Autodesk Revit MEP User's Guide (Chapter: Worksharing - Managing Linked Models):
"When working in a shared model environment, you can unload a link temporarily from your local file using the Unload for Me command in the Manage Links dialog. This action affects only your local copy and does not impact other users working on the project. The link remains loaded for all other team members." This means that using Manage Links → Select the architectural link → Click Unload for Me, the designer can remove the visual presence of the architectural model from all of their views without impacting the rest of the team. The link remains active in the central model, and other disciplines will continue to see it as usual.
Here's a breakdown of the incorrect options:
B . Remove: Permanently removes the link from the project, affecting all users - not allowed in a team collaboration environment.
C . Unload: Temporarily unloads the link for everyone upon synchronization with the central model.
D . Unload For all users: Explicitly unloads the link globally; all users lose access to the link after the next sync.
Therefore, the correct process for the electrical designer to hide the architectural link only for themselves is:
➡️ Manage Links → Select architectural link → Click "Unload for Me."
References:
Autodesk Revit MEP 2011 User's Guide, Chapter 55: Worksharing - Managing Links, pp. 1342-1344.
Autodesk Revit 2021 Help, "Unload for Me vs. Unload - Managing Links in Workshared Projects." Smithsonian Facilities Revit Template User's Guide (2021), Section 6.3.3 - Worksharing and Link Visibility Controls.
NEW QUESTION # 52
How can an arrowhead be added to a lag leader line?
- A. Change the Leader Type to Free End.
- B. Enable Leader Arrowhead in the instance properties.
- C. Select the tag and enable Leader Line in the Properties palette
- D. Choose an arrow type for the Leader Arrowhead in the Type Properties.
Answer: D
Explanation:
In Autodesk Revit for Electrical Design, arrowheads on leader lines-such as those used with tags, text notes, or annotations-are controlled through Type Properties, not through instance properties or free-end options.
According to the Revit MEP User's Guide - Annotating Chapter (Chapter 47 and 42), the section "Modifying Tags" explains:
"Select the tag, and on the Properties palette, click (Edit Type). In the Type Properties dialog, select a value for Leader Arrowhead to add an arrowhead to the leader line." This confirms that the arrowhead is defined at the type level, meaning any change applies to all tags or text notes of that annotation type throughout the project. The Leader Arrowhead property allows the designer to choose from predefined arrowhead styles (like "Filled Arrow," "Dot," "Tick Mark," etc.), which are defined globally under:
Manage tab → Settings panel → Additional Settings → Arrowheads.
Furthermore, the document specifies under "Leader Arrowhead Properties":
"Sets the arrowhead shape on the leader line. The value is the name of the arrowhead style defined by the Arrowheads tool." This behavior applies to all annotation categories, including text notes, keynotes, material tags, and electrical device tags, maintaining consistency across all view types in an electrical project.
Therefore, Option C is the correct answer because arrowheads are configured via Type Properties, while the other options are inaccurate:
Option A (Free End) only defines leader attachment behavior.
Option B (Instance properties) does not include a "Leader Arrowhead" toggle.
Option D (Enable Leader Line) only adds or removes a leader line, not the arrowhead style.
References:
Autodesk Revit MEP User's Guide - Chapter 47 "Annotating," pp. 1040-1055 Autodesk Revit MEP User's Guide - Chapter 42 "Text Notes and Tags," pp. 936-949 Autodesk Revit Electrical Design Essentials - "Leader Arrowhead Properties and Annotation Standards"
NEW QUESTION # 53
An electrical designer is working on a project with multiple buildings. The designer wants to organize the Project Browser by building For example, all views related to Building A will be sorted under Building A. and all views related to Building B will be sorted under Building B.
The designer decides to create a new parameter, assign it to views, and then sort the Project Browser according to the new parameter.
Which parameter should the designer use?
- A. A reporting parameter
- B. A project parameter
- C. A global parameter
- D. A family parameter
Answer: B
Explanation:
In Autodesk Revit, Project Parameters are used to add custom fields that apply to multiple elements within a specific project file - such as views, sheets, or schedules. These parameters allow project teams to categorize, group, and sort information within the Project Browser or within schedules without editing families or external files.
As defined in the Revit MEP User's Guide and Revit Structure Parameters Chapter:
"Project parameters are specific to a single project file. Information stored in project parameters cannot be shared with other projects. A project parameter can be used, for example, to categorize views within a project." This statement directly confirms that project parameters are the correct tool for sorting or grouping views in the Project Browser.
To organize elements (like views or sheets) by building, the designer can create a custom project parameter named "Building" and assign it to the View category. Once assigned, the parameter values (e.g., "Building A" or "Building B") can be filled in for each view.
The Smithsonian Facilities Revit Template Guide further supports this:
"View purpose is a Revit project parameter, providing a means for users to organize the many views that may exist in a BIM." Thus, using a project parameter allows users to add a "Building" field to each view, enabling customized browser organization (e.g., group views by Building A, Building B, etc.) without requiring shared parameters or family editing.
References:
Revit MEP User's Guide - Chapter "Parameters" p. 1541-1543
Smithsonian Facilities Revit Template User's Guide - Section 2.8.1 "View Types and View Templates," p. 29 Autodesk Revit Electrical Design Essentials - Parameter Management Section
NEW QUESTION # 54
How can an electrical designer see changes from other users without saving their own work to the central model?
- A. Manage Worksets
- B. Worksharing Display
- C. Relinquish All Mine
- D. Reload Latest
Answer: D
Explanation:
In Autodesk Revit, particularly for electrical and MEP design disciplines using a workshared model, the command "Reload Latest" allows a designer to see changes made by other users without saving or publishing their own work to the central model. This tool ensures that while the designer continues to work locally, their environment stays updated with the latest modifications made by colleagues.
According to the Autodesk Revit MEP User Guide (Chapter 54 - Working in a Team), under the section Loading Updates from the Central Model, it states:
"As you work, you can see the changes other team members have made to the project after they have been synchronized with the central model. You can load updates from the central model without publishing your changes to the central model.
In your local file, click Collaborate tab ➤ Synchronize panel ➤ (Reload Latest)." This confirms that the Reload Latest command refreshes your local file with any modifications from the central file that others have synchronized, but it does not send your local changes back. It is a critical feature for coordination in a team environment, especially when multiple designers-such as electrical, mechanical, and structural engineers-are contributing simultaneously to a shared BIM model.
By contrast:
A . Relinquish All Mine only releases ownership of elements but doesn't update the local model.
C . Manage Worksets is for controlling visibility and editability of worksets.
D . Worksharing Display visually identifies ownership and status but doesn't refresh model data.
Therefore, when an electrical designer needs to review updates from others (for example, when a lighting layout needs coordination with architectural ceiling adjustments), the proper workflow is to use Reload Latest, ensuring all new information from the central model appears instantly without saving or affecting their current unsaved edits.
References:
Autodesk Revit MEP 2011 User's Guide, Chapter 54: Working in a Team, "Loading Updates from the Central Model," pp. 1332-1333.
Autodesk Revit Structure User's Guide, Chapter 49: Working in a Team, "Loading Updates from the Central Model," p. 1230.
Smithsonian Revit Template Guide (2021), Section 6.3.1 How Worksharing Works, confirming synchronization and reloading behavior for shared Revit environments.
NEW QUESTION # 55
Refer to exhibit.
- A. Delete the existing callout and create a new one with the correct type.
- B. Open the callout view from the Project Browser and change its type.
- C. Select the callout and change its type from the Type Selector.
- D. Select the callout and choose a detail view under Reference Other View.
Answer: D
Explanation:
In Autodesk Revit, when an electrical designer creates a callout view, the software automatically generates a new dependent or independent view based on the selected callout type. However, if a callout is accidentally linked to the wrong or redundant view, the designer can easily reassign it to another existing view without recreating the callout. This can be done using the Reference Other View property in the Properties palette.
According to the Revit MEP User's Guide (Chapter 47 "Views and Callouts"):

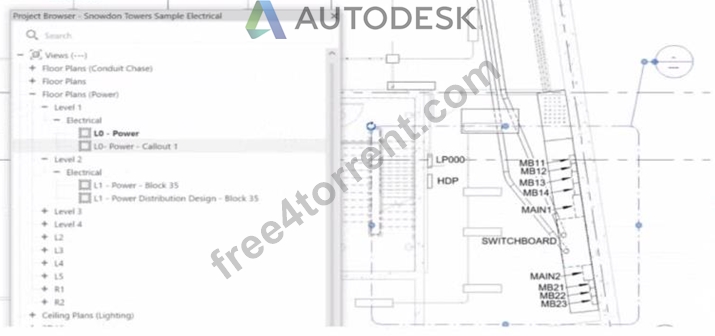

"To link a callout to an existing view rather than creating a new one, select the callout, and under the properties for that element, use Reference Other View to specify the desired target view." This means that when the designer selects the callout (in this case, shown as "L0 - Power - Callout 1" in the Project Browser), they can modify the Reference Other View setting from the Properties palette to point to a different, pre-existing detail view or callout view-for example, one showing an enlarged power distribution layout or switchboard detail.
This is the most efficient workflow because:
It avoids recreating or redrawing the callout (unlike Option C).
It preserves all annotation and sheet referencing data.
It ensures alignment and consistency across sheet references.
The Smithsonian Facilities Revit Template User's Guide reinforces this standard Revit practice:
"When a view reference or callout is incorrectly associated, use the Reference Other View property to redirect the annotation to an existing detail or dependent view." Why the Other Options Are Incorrect:
B . Change its type from the Type Selector: Callout types control annotation style (not the referenced view).
C . Delete and recreate: This is unnecessary and inefficient.
D . Open the callout view and change its type: Callout type cannot be changed directly once created; it's controlled by view properties.
Therefore, the correct and Revit-recommended approach is Option A: Select the callout and choose a detail view under Reference Other View.
References:
Autodesk Revit MEP User's Guide - Chapter 47 "Views and Callouts," pp. 1092-1097 Smithsonian Facilities Revit Template User's Guide - Section 2.8.1 "View Types and Templates," pp. 29-31 Autodesk Revit Electrical Design Essentials - "Callouts, Detail Views, and Referencing Workflows"
NEW QUESTION # 56
......
RVT_ELEC_01101 Dumps - Pass Your Certification Exam: https://pass4sures.free4torrent.com/RVT_ELEC_01101-valid-dumps-torrent.html
